PSLC EMMC 5.1 4/8/16GB Emmc Chips PE 30000 High Endurable Emmc BGA 153

  • 1
  • 2

Brand Name : NUW

Model Number : G2504GPLCB/G2508GPLCB/G2516GPLCB

Place of Origin : Shenzhen, China

MOQ : 50pcs

Price : Negotiable

Payment Terms : L/C,T/T

Supply Ability : 100K a month

Delivery Time : 10 to 15 days

Product name : PSLC eMMC 5.1

Nand : PSLC

Storage Capacity : 4/8/16GB

Write Speed : Up to 240 MB/s

Condition : new

Bus Speed : HS400 (up to 400 MB/s)

Key Features : embedded EMMC

Error Correction : Built-in ECC (Error Correction Code)

Contact Now

PSLC EMMC 5.1 4/8/16GB Emmc Chips PE 30000 High Endurable Emmc BGA 153

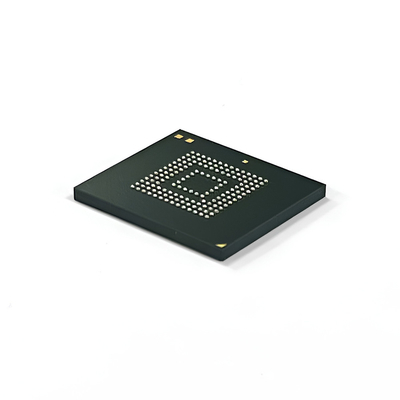

Our high-endurance pSLC eMMC 5.1 embedded memory chips are available in 4GB, 8GB and 16GB capacities, utilizing a standard 153-ball FBGA package and fully compliant with the JEDEC eMMC 5.1 specification.
Adopting pSLC technology at its core, the product configures NAND flash memory cells into a single-bit storage mode, delivering up to 30,000 P/E program/erase cycles — far exceeding that of standard TLC eMMC (approximately 3,000 cycles).
pSLC eMMC 5.1 is specially designed for embedded applications requiring high-frequency write operations and exceptional stability.

Core Features of pSLC eMMC 5.1

  • Interface Standard: eMMC 5.1, supporting HS400 high-speed mode with a maximum transfer rate of up to 400MB/s.
  • Capacity Options: 4GB / 8GB / 16GB.
  • Package: BGA-153 (11.5×13.0mm), compatible with mainstream embedded motherboard designs.
  • Ultra-High Endurance: pSLC mode with 30,000 P/E cycles, greatly extending the service life of equipment.
  • Stability & Reliability: Built-in ECC error correction, bad block management and wear-leveling algorithms to ensure data integrity.


PSLC EMMC 5.1 4/8/16GB Emmc Chips PE 30000 High Endurable Emmc BGA 153PSLC EMMC 5.1 4/8/16GB Emmc Chips PE 30000 High Endurable Emmc BGA 153

PSLC EMMC 5.1 4/8/16GB Emmc Chips PE 30000 High Endurable Emmc BGA 153PSLC EMMC 5.1 4/8/16GB Emmc Chips PE 30000 High Endurable Emmc BGA 153

PSLC EMMC 5.1 4/8/16GB Emmc Chips PE 30000 High Endurable Emmc BGA 153PSLC EMMC 5.1 4/8/16GB Emmc Chips PE 30000 High Endurable Emmc BGA 153


Technical Specifications of PSLC eMMC 5.1
Model G2504GPLCB G2508PLCB G2516PLCB
NAND Flash PSLC PSLC PSLC
Capacity 4GB 8GB 16GB
Warranty 1 Year 1 Year 1 Year
Read Speed up to 330MB/s up to 330MB/s up to 330MB/s
Write Speed up to 240MB/s up to 240MB/s up to 240MB/s
Operating Temperature0 0℃~70℃ 0℃~70℃ 0℃~70℃
EP ≥30000 ≥30000 ≥30000
Packaging Specification BGA 153 BGA 153 BGA 153
Size 11.5mm×13mm×1.0mm 11.5mm×13mm×1.0mm 11.5mm×13mm×1.2mm
